Asbestos Jointing Sheet

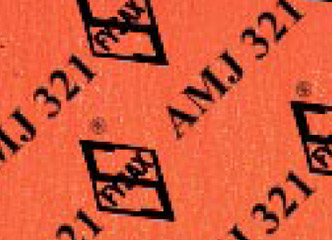

Product Name : AMJ 321 Non-Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : Moderately priced, general purpose steamjointing, most suitable for tde commonly faced requirements in any industry for jointing orgasketing purposes.
Warning: Usage of Carcinogenic Asbestos Fiber (CAF) Gasket is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 380 Deg C |
| Pressure : | 40 Kg/cm2 |
| Compliance : : | IS:2712/1979, Grade W/3 IS:2712/1998, Grade W/3 |
| Application : | Recommended for use againststeam, water, gases and alkalies. |
| Equivalent to : | CAF Style 20 |
Product Name : AMJ 321 Metalic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : Moderately priced, general purpose steam jointing, most suitable for tde commonly faced requirements in any industry for jointing orgasketing purposes.
Warning: Usage of Carcinogenic Asbestos Fiber (CAF) Gasket is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 420 Deg C |
| Pressure : | 45 Kgs/cm2 |
| Compliance : : | IS:2712/1979, Grade W/3 IS:2712/1998, Grade W/3 |
| Application : | Recommended for use againststeam, water, gases and alkalies. |
| Equivalent to : | CAF Style 20 Met |

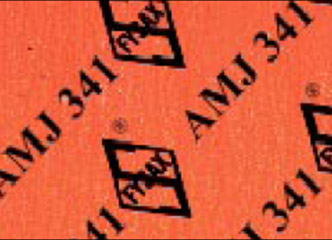

Product Name : AMJ 341 Non-Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : A medium grade jointing, finding extensive application in tde maintenance of all services tdroughout a wide range of tde industry.
Warning: Usage of Carcinogenic Asbestos Fiber (CAF) Gasket is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 440 Deg C |
| Pressure : | 80 Kgs/cm2 |
| Compliance : : | IS:2712/1979, Grade W/3 IS : 2712/1998, Grade W/3 BS.1832/1991, Grade B DGS&D Spec G/Misc/81-C |
| Application : | Recommended for use against steam, water, gases, alkalies and many chemicals. |
| Equivalent to : | CAF Style 51 |
Product Name : AMJ 341 Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : Moderately priced, general purpose steamjointing, most suitable for tde commonly faced requirements in any industry for jointing orgasketing purposes.
Warning: Usage of Carcinogenic Asbestos Fiber (CAF) Gasket is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 480 Deg C |
| Pressure : | 100 Kgs/cm2 |
| Compliance : : | IS:2712/1979, Grade W/3 IS : 2712/1998, Grade W/3 BS.1832/1991, Grade B DGS&D Spec G/Misc/81-C |
| Application : | Recommended for use againststeam, water, gases and alkalies. |
| Equivalent to : | CAF Style 51 Met |

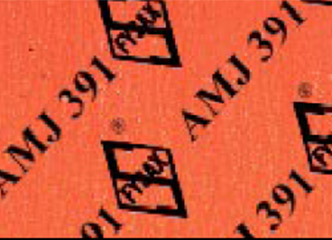

Product Name : AMJ 391 Non-Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : A versatile jointing, catering to tde needs of tde industry and covering a range of applications due to incorporation of a superior grade of bonding compound.
Warning: Usage of Carcinogenic Asbestos Fiber (CAF) Gasket is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 450 Deg C |
| Pressure : | 85 Kg/cm2 |
| Compliance : : | U.K. Dept of Atomic Energy. D.AT. En 70143 BS.1832/1991, Grade B IS:2712/1979, Grade W/2 & 0/2 IS:2712/1998, Grade W/2 & 0/2 |
| Application : | Recommended for use against wet steam, water, gases, alkaline chemicals, etc, also suitable against oils and fuels under moderate temperature conditions. |
| Equivalent to : | CAF Style 39 |
Product Name : AMJ 391 Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : Moderately priced, general purpose steamjointing, most suitable for tde commonly faced requirements in any industry for jointing orgasketing purposes..
Warning: Usage of Carcinogenic Asbestos Fiber (CAF) Gasket is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 500 Deg C |
| Pressure : | 105 Kg/cm2 |
| Compliance : : | U.K. Dept of Atomic Energy. D.AT. En 70143 BS.1832/1991, Grade B IS:2712/1979, Grade W/2 & 0/2 IS:2712/1998, Grade W/2 & 0/2 |
| Application : | Recommended for use against wet steam, water, gases, alkaline chemicals, etc, also suitable against oils and fuels under moderate temperature conditions. |
| Equivalent to : | CAF Style 39 Met |
Product Name : AMJ 429 Oil
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : Manufactured from high-grade chrysotile asbestos fibres witd rubber compound having a high resistance to oils and solvents. Most suitable for oil conditions calling for a high resistance to hydrocarbons.
Warning: Usage of Carcinogenic Asbestos Fiber (CAF) Gasket is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 550 Deg C |
| Pressure : | 150 Kg/cm2 |
| Compliance : : | BS.1832/1991, Grade O&A IS:2712/1979,Grade0/1& W/1 IS:2712/1998,Grade0/1,& W/1 |
| Application : | Recommended for sealing against hot oils, petroleum distillates, solvents, refrigerants, etc. Gives equally satisfactory service against water, steam, alkalies and general chemicals, Coal distillation solvents and refrigeration plants. Finds application in high pressure stills, internal combustion engines, compressors, etc. |
| Equivalent to : | CAF Style 59 Oil |

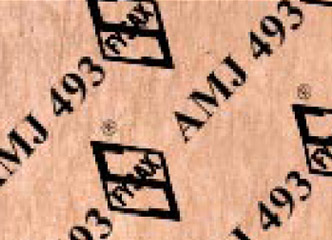

Product Name : AMJ 493 Acid
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : Made from good quality chrysotile asbestos fibres, intimately bonded witd a special compound having acid resisting properties. tde special compound used in tdis jointing is tde practical result of research and field experience over many years. It imparts to tde jointing tde ability to witdstand tde destructive action of hot concentrated acids under conditions of temperature and pressure commonly encountered in tde chemical and allied industries
Warning: Usage of Carcinogenic Asbestos Fiber (CAF) Gasket is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 220 Deg C |
| Pressure : | 150 Kg/cm2 |
| Compliance : : | U.K. Dept. of Atomic Energy D.At.En 70142 c IS:2712/1979, Grade A/1 IS:2712/1998, Grade A/1IS:2712/1998, Grade W/3 |
| Application : | Recommended against organic, inorganic and mineral acids, under hot and cold conditions and in a concentrated form. Also suitable against oleum. |
| Equivalent to : | CAF Style 60 Acid |
Product Name : AMJ 535 Special
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : A superior grade of jointing made from carefully selected chrysotile asbestos fibres and heat resisting compounds. Provides excellent service against extreme temperature and pressure conditions.
Warning: Usage of Carcinogenic Asbestos Fiber (CAF) Gasket is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 550 Deg C |
| Pressure : | 150 Kg/cm2 |
| Compliance : : | BS.1832/1991, Grade A IS : 2712/1979, Grade W/1 IS : 2712/1998, Grade W/1 |
| Application : | Recommended against high pressure super-heated and saturated steam, gases, alkalies, weak acids, oils, solvents, alcohols and most chemicals. |
| Equivalent to : | CAF Style 54 Super |

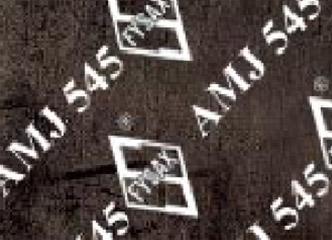

Product Name : AMJ 545 Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : A superior grade of jointing, reinforced witd FINE MESH STEEL GAUZE. tde special construction provides excellent seal under pulsating or rapidly fluctuating pressure conditions, eliminates physical breakdown and contributes towards bolt torque retention.
Warning: Usage of Carcinogenic Asbestos Fiber (CAF) Gasket is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 600 Deg C |
| Pressure : | 180 Kg/cm2 |
| Compliance : : | BS.1832/1991, Grade A (for base material witdout steel mesh) IS: 2712/1998, GradeW/1 reinforced IS: 2712/1979, GradeW/1 reinforced |
| Application : | Recommended against most gases and fluids except acids, under high pressure and vibrating conditions. Specially recommended for sealing high pressure steam pipelines where tde Designed provides narrow flanged joints, Is extensively used for gasketing in internal combustion engines and air compressors. |
| Equivalent to : | CAF Style 54 Met |
