Asbestos Packing
Product Name : AMP 31
Brand : FYSAX SPITMAAN
Manufacturer : Mechanical Packing Industries Pvt Ltd
Product Description : White dry Asbestos Packing plaited with cover on cover throughout.
Warning: Usage of Carcinogenic Asbestos Fiber White Rope is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 7.5 kgs minimum packing |
| Thickness : | From 6mm to 52mm |
| Temperature : | Max: 350 Deg C |
| Compliance : : | G/Misc/81-C 5.0 IS: 4687/1995, Type-1, non-acid joints etc. IS: 4687/1980 Grade-1, non-acid.IS:2712/1998, Grade W/3 |
| Application : | Steam glands. boiler lagging, sealing of oven and autoclave doors. Also caulking,thermal insulation, boiler sealing, furnace & joints. |
| Equivalent to : | Carcinogenic Asbestos based Style 1000 |
Product Name : AMP 32
Brand : FYSAX SPITMAAN
Manufacturer : Mechanical Packing Industries Pvt Ltd
Product Description : Graphited Coated and Lubricated Plaited Asbestos Packing, cover on cover throughout.
Warning: Usage of Carcinogenic Asbestos Fiber Black Gland Packing is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 7.5 kgs minimum packing |
| Thickness : | From 6mm to 52mm |
| Temperature : | Max: 325 Deg C |
| Compliance : : | DGS&D 5G/Misc/81-C,Clause6(A), (B) & (D) IS:4687/1995, Type 2 154687/1980, Grade 2 |
| Application : | Recommended for use in rotary and reciprocating pumps, steam engines and valves under medium pressure conditions. |
| Equivalent to : | Carcinogenic Asbestos Based Style 1100 |

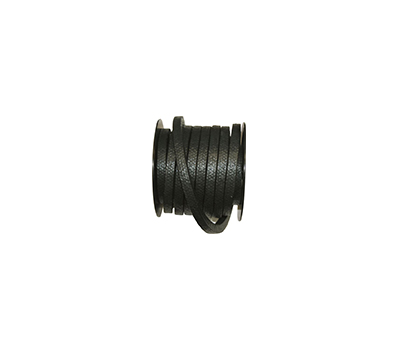

Product Name : AMP 120
Brand : FYSAX SPITMAAN
Manufacturer : Mechanical Packing Industries Pvt Ltd
Product Description : An all purpose superior SELF lubricating packing. Remains flexible and resilient under high pressure temp. conditions and its self bedding properties avoid scoring of shaft and offers an efficient seal on slightly worn or scored moving members.
Warning: Usage of Carcinogenic Asbestos Fiber Gland Packing is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 7.5 kgs minimum packing |
| Thickness : | From 6mm to 52mm |
| Temperature : | Max: 500 Deg C |
| Pressure : | 80 Kgs/cm2 |
| Compliance : : | DGS&D G/Msic/81-C,Clause 6(A), (B) & (C) IS:4687/1995 Type 3 IS:4687/1980 Grade 3 |
| Equivalent to : | Carcinogenic Asbestos based Style 1800 |

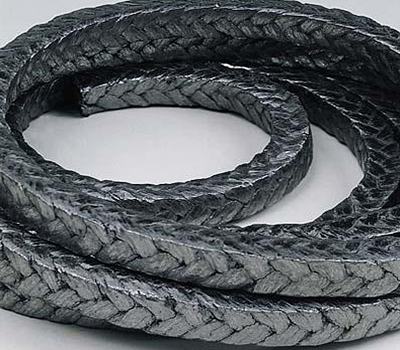

Product Name : AMP 360
Brand : FYSAX SPITMAAN
Manufacturer : Mechanical Packing Industries Pvt Ltd
Product Description : Lubricated and Graphited Asbestos Packing.
Warning: Usage of Carcinogenic Asbestos Fiber Gland Packing is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 7.5 kgs minimum packing |
| Thickness : | From 6mm to 52mm |
| Temperature : | Max: 350 Deg C |
| Compliance : : | "IS:4687/1995 type 2* (with white metal wire) IS:4687/1980 Grade 2* (with white metal wire)" |
| Application : | For rotary shafts and reciprocating rods involved in heavy duty application. Especially suitable for viscous and abrasive liquids. Incorporation of white metal, a low friction bearing surface, eliminates the servicing of moving parts |
| Equivalent to : | Carcinogenic Asbestos based Style 1200 |
Product Name : AMP 205
Brand : FYSAX SPITMAAN
Manufacturer : Mechanical Packing Industries Pvt Ltd
Product Description : Metallic Wire reinforced Asbestos Packing with Lubrication and Graphited Finish
Warning: Usage of Carcinogenic Asbestos Fiber Gland Packing is dangerous and extreme care must be taken. Follow guidelines as per IS 11769. Pictorial Warning must be displayed on the Equipment as per IS 12081.
| Standard Size : | 7.5 kgs minimum packing |
| Thickness : | From 6mm to 52mm |
| Temperature : | Max: 900 Deg C |
| Pressure : | 300 Kg/cm2 |
| Application : | A high-grade packing for super sealing jobs. |
| Equivalent to : | Carcinogenic Asbestos based Style 1960 |
