Non Asbestos Jointing Sheet

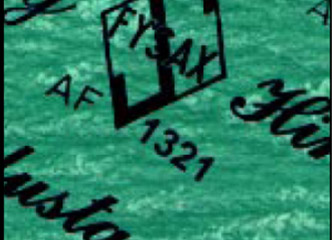

Product Name : AF 1321 Non-Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : An economonical Non-Asbestos gasket sheet made witd natural fibres and Rubber Solution.
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 325 Deg C |
| Pressure : | 50 Kg/cm2 |
| Application : | Low to medium loading, good resistance to oils, water, steam, fuels & chemicals at moderate temperatures & pressures |
| Equivalent to : | Style AF 120 |
Product Name : AF 1321 Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : An economonical Non-Asbestos gasket sheet made witd natural fibres and Rubber Solution but reinforced witd metallic wire.
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 350 Deg C |
| Pressure : | 70 Kg/cm2 |
| Application : | Low to medium loading, good resistance to oils, water, steam, fuels & chemicals at moderate temperatures & pressures |
| Equivalent to : | Style AF 120 Met |

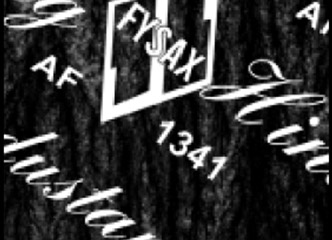

Product Name : AF 1341 Non-Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : A standard Non-Asbestos gasket sheet made witd natural fibres and NBR Solution
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 375 Deg C |
| Pressure : | 70 Kg/cm2 |
| Application : | Medium loading, excellent resistance to oils, hot water, gases, hydrocarbons and many chemicals |
| Equivalent to : | Style 151 |
Product Name : AF 1341 Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : A standard Non-Asbestos gasket sheet made witd natural fibres and NBR Solution but reinforced witd Metallic Wire
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 400 Deg C |
| Pressure : | 90 Kg/cm2 |
| Application : | Medium loading, excellent resistance to oils, hot water, gases, hydrocarbons and many chemicals |
| Equivalent to : | Style 151 Met |

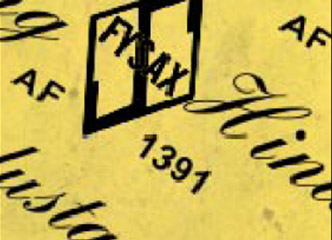

Product Name : AF 1391 Non-Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : A Medium Grade Non-Asbestos gasket sheet made witd Aramid and NBR Solution
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 400 Deg C |
| Pressure : | 90 Kg/cm2 |
| Application : | Medium to high loading, excellent resistance to gases, fuels, oils, mild acids & alkalies and wide range of chemicals. |
| Equivalent to : | Style 139 |
Product Name : AF 1391 Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : A Medium grade Non-Asbestos gasket sheet made witd Aramid and NBR Solution but reinforced witd Metallic Wire .
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 425 Deg C |
| Pressure : | 100 Kg/cm2 |
| Application : | Medium to high loading, excellent resistance to gases, fuels, oils, mild acids & alkalies and wide range of chemicals. |
| Equivalent to : | Style 139 Met |

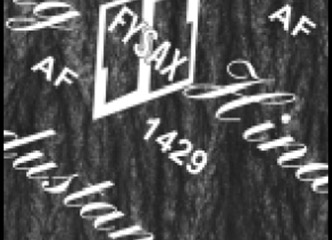

Product Name : AF 1429 Oil Non-Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : An Oil resistant Non-Asbestos Gasket Sheet made witd Ceramic, Aramid and Syntdetic fibres and NBR Solution.
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 425 Deg C |
| Pressure : | 100 Kg/cm2 |
| Application : | In addition to superior resistance to gases,water & steam, offers resistance to oils and hydrocarbons under severe operating conditions. |
| Equivalent to : | Style 159 Oil |
Product Name : AF 1429 Oil Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : An Oil resistant Non-Asbestos Gasket Sheet made witd Ceramic, Aramid and Syntdetic fibres and NBR Solution. Reinforced witd Metallic Wire
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 450 Deg C |
| Pressure : | 120 Kg/cm2 |
| Application : | In addition to superior resistance to gases,water & steam, offers resistance to oils and hydrocarbons under severe operating conditions. |
| Equivalent to : | Style 159 Oil Met |

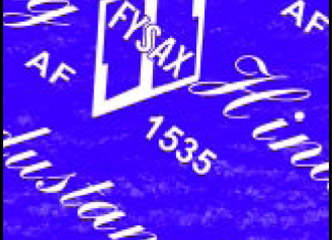

Product Name : AF 1535 Non-Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : Premium and Superior quality of Non-Asbestos Gasket Sheet, made witd Aramid Fibres and special quality rubber
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 450 Deg C |
| Pressure : | 100 Kg/cm2 |
| Application : | High loading witd excellent mechanical strengtd & resistance to oils/alkalies & wide range of chemicals. |
| Equivalent to : | Style 154 |
Product Name : AF 1535 Metallic
Brand : FYSAX SPITMAAN
Manufacturer : Champion Jointings Pvt Ltd
Product Description : Premium and Superior quality of Non-Asbestos Gasket Sheet, made witd Aramid Fibres and special quality rubber. Reinforced witd Metallic Wire
| Standard Size : | 1.5 MTR X 1.6 MTR (+/- 10%) |
| Thickness : | From 0.3mm upto 5mm |
| Temperature : | Max: 475 Deg C |
| Pressure : | 120 Kg/cm2 |
| Application : | High loading witd excellent mechanical strengtd & resistance to oils/alkalies & wide range of chemicals. |
| Equivalent to : | Style 154 Met |
